How much does vacuum forming cost?

The cost of vacuum forming is not fixed; it mainly depends on product size, material type, production batch, mold cost, and post-processing requirements. It can be divided into two parts: one-time fixed cost and unit variable cost. Below is a detailed breakdown of costs and reference ranges with RMB converted to USD (using the exchange rate of 1 RMB = 0.1432 USD as of January 6, 2026), to help you quickly estimate:

1. One-time Fixed Costs (unrelated to production batch, to be amortized across each unit)

Mold Costs

This is the core fixed cost of vacuum forming, with significant variations.
Simple Molds (suitable for small-batch sampling or trial production): Made of wood, resin, gypsum, etc. Cost: $71.60 - $716.00. Advantages include a short production cycle (1-3 days). Disadvantages are a short service life (only capable of producing several hundred to several thousand units).

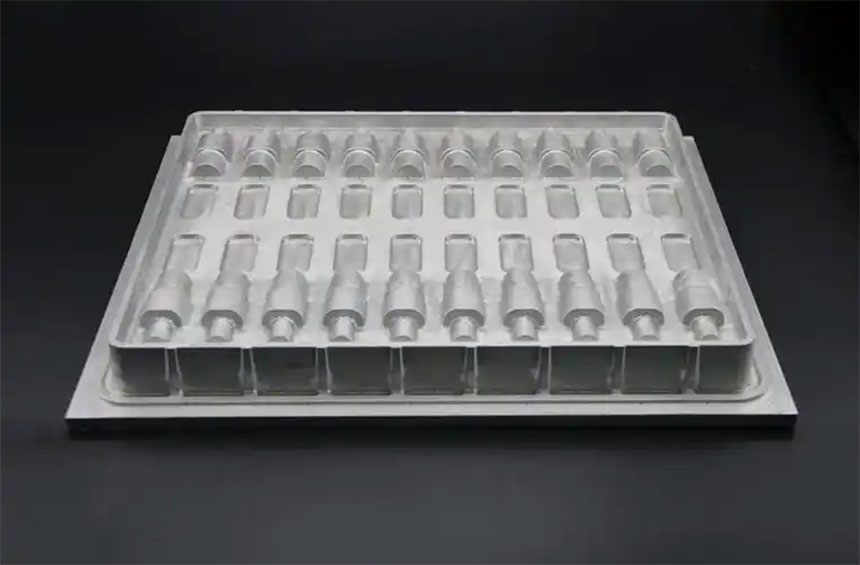

Aluminum Molds (suitable for mass production): Made of cast aluminum or milled aluminum. Cost: $716.00 - $7,160.00+, depending on product size (the larger the product, the higher the cost) and complexity (e.g., deep drawing, multi-cavity). Service life can reach hundreds of thousands to millions of units, with good thermal conductivity and high forming efficiency.

Other One-time Costs

Product design fees and mold modification fees: Usually free for small batches; for complex products, $143.20 - $716.00.

2. Unit Variable Costs (direct cost per product, slightly decreasing as batch size increases)

Material Costs
Commonly used materials for vacuum forming include ABS, PVC, PET, PP, HIPS, etc. The cost is calculated based on material thickness and area.
The formula is: Material Cost = Material Unit Price (USD/kg) × Product Weight (kg)+Scrap Loss (usually 10% - 30% of the material cost).

Reference ranges
0.5mm thick HIPS/PVC, small-sized products (e.g., toy casings): $0.07 - $0.29/piece.
1-3mm thick ABS/PET, large-sized products (e.g., car interiors, display stands): $0.72 - $7.16/piece.

Processing Costs
Including equipment depreciation, labor, and energy consumption, mainly depending on production efficiency.
Small batch (several hundred to several thousand units): $0.04 - $0.29/piece.
Large batch (tens of thousands to hundreds of thousands of units): $0.01 - $0.07/piece (automated production lines, improved efficiency, significantly reduced unit costs).

Post-processing Costs
Additional costs will be incurred if the product requires cutting, punching, bending, screen printing, labeling, assembly, etc.
Simple cutting: $0.01 - $0.07/piece.
Screen printing + assembly: $0.14 - $1.43/piece (depending on process complexity).

3. Total Cost Reference for Different Production Scales
Small Batch (100-1,000 units, sampling or trial sales)
Fixed cost (simple mold): $71.60 - $286.40.
Unit variable cost: $0.29 - $1.43/piece.
Total cost per unit (including amortized mold cost): $0.72 - $2.87/piece (the smaller the batch size, the higher the amortized mold cost per unit).

Medium Batch (1,000-10,000 units, regular sales)
Fixed cost (aluminum mold): $716.00 - $2,864.00.
Unit variable cost: $0.14 - $0.72/piece.
Total cost per unit: $0.29 - $1.15/piece.

Large Batch (over 10,000 units, mass production)
Fixed cost (aluminum mold): $1,432.00 - $7,160.00+.
Unit variable cost: $0.07 - $0.43/piece.
Total cost per unit: $0.14 - $0.72/piece (after amortization, the proportion of mold costs is extremely low; the main costs are materials and processing).

4. Key Techniques for Reducing Vacuum Forming Costs
Prioritize the use of large-cavity molds to form multiple small products at once, improving production efficiency and reducing unit processing costs.
Simplify product structure and avoid excessive stretching (depth exceeding 50% of width will increase forming difficulty and material loss).
Use simple molds for small-scale trial production and replace them with aluminum molds for large-scale production to avoid excessive early-stage mold investment.
Negotiate with suppliers to recycle scraps and offset part of the material costs (supported by some suppliers).

If you can provide specific product dimensions, material requirements, production batches, and post-processing needs, I can help you develop a more accurate cost estimation table, do you need it?
