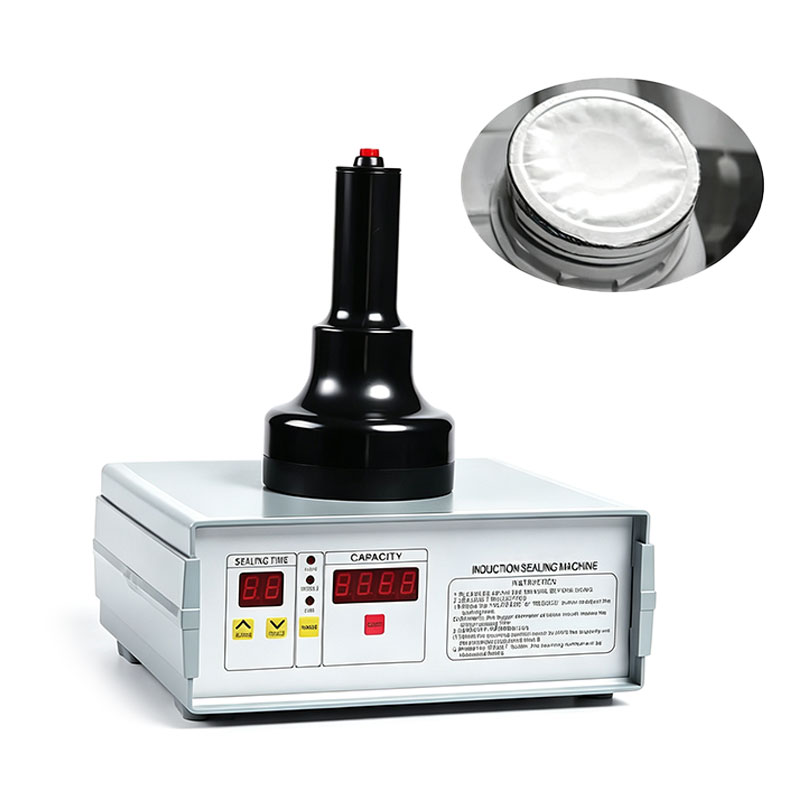

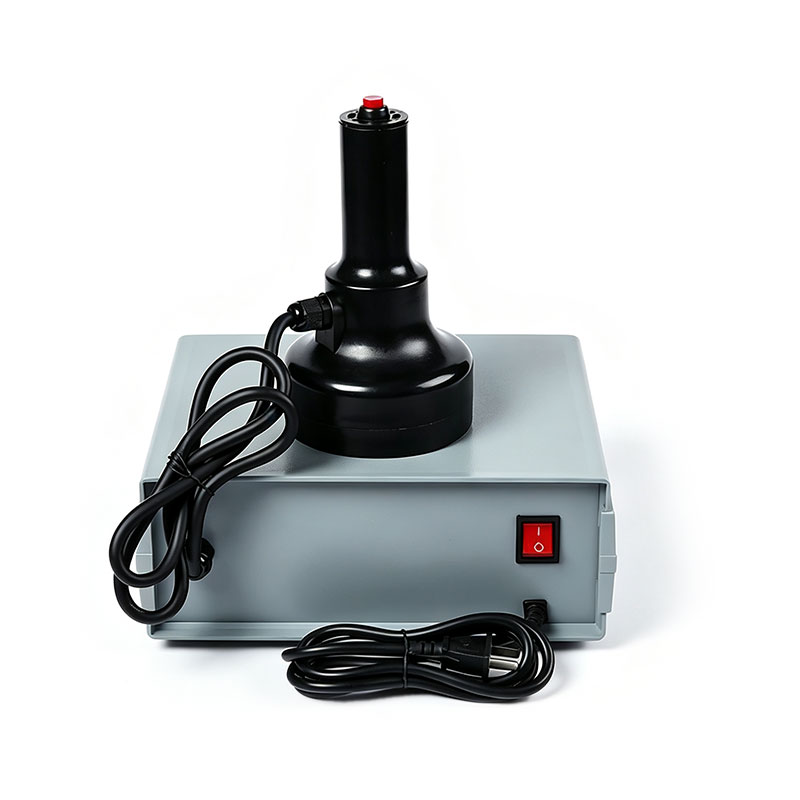

Handheld Plastic Glass Bottle Lid Cap Aluminum Foil Sealing Machine

Hermetic, Tamper-Evident Sealing at Your Fingertips

In modern packaging, consumer trust is built on product safety. A leaking bottle of liquid detergent ruins shipments, while an unsealed bottle of dietary supplements raises immediate tampering concerns.

Our Handheld Electromagnetic Induction Aluminum Foil Sealing Machine brings industrial-grade security to low-volume packaging lines, R&D laboratories, and startup brands. By utilizing high-frequency electromagnetic fields, this compact device instantly melts the polymer coating on the foil liner inside a closed bottle cap, welding it securely to the container's rim. The result is a factory-quality, airtight seal that locks in freshness, prevents liquid leakage during transit, and provides clear visual evidence of product integrity.

Non-Contact Sealing Technology: The machine seals the foil liner after the cap has been screwed tightly onto the bottle. The electromagnetic field safely passes through the plastic or glass cap, heating only the aluminum foil inside, ensuring the product is never exposed to external contamination during the sealing process.

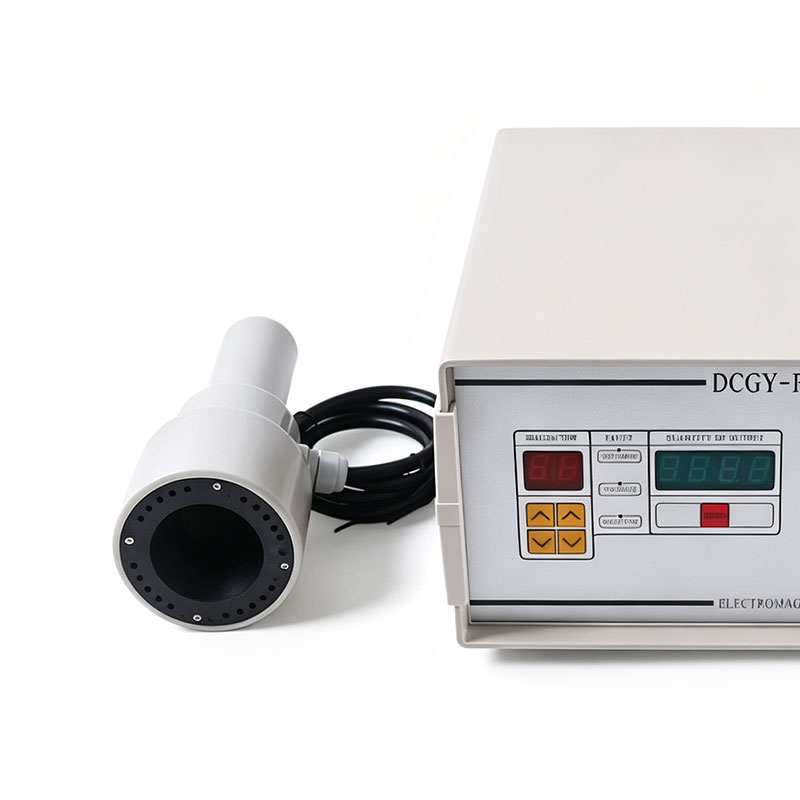

Ergonomic & Portable Design: Features a lightweight, handheld induction wand attached to a compact digital base unit. Operators can easily move the wand over stationary bottles, minimizing fatigue and allowing for rapid, flexible sealing across different workbench setups.

Intelligent Digital Control: Equipped with a precision LED microcomputer control panel. Operators can easily adjust the electrical power output and the sealing time (typically between 0.5 and 2.0 seconds) to perfectly match different cap diameters and foil liner thicknesses.

Broad Container Compatibility: Highly versatile and capable of sealing both plastic (PET, PP, PE, PVC) and glass containers. Note: Electromagnetic induction is not compatible with metal bottles or metal caps, as the magnetic field will heat the entire metal container.

Machine Type: Manual handheld electromagnetic induction bottle foil sealer
Applicable Sealing Diameter: 10mm to 50mm, or 20mm to 100mm (Depending on the specific wand model selected)
Sealing Speed: 10 to 30 bottles per minute (Dependent entirely on operator speed and cap diameter)
Sealing Time: 0.1 to 3.9 seconds (Digitally adjustable)
Power Supply: 110V or 220V, 50/60Hz, Single Phase
Compatible Bottle Materials: Plastics (PET, HDPE, PP, PVC) and Glass
Incompatible Materials: Metal bottles and Metal caps cannot be used with induction sealing
Cooling System: Integrated dual internal cooling fans for continuous, overheat-free operation

Induction sealing is a scientific process that requires absolute material compatibility. If the heat-seal polymer coating on the aluminum foil liner does not chemically match the resin of your bottle (e.g., using a PE-coated liner on a PET bottle), the induction field will melt the wax, but the foil will never bond to the plastic rim, resulting in a failed seal.

BlissPak eliminates this engineering headache. We supply the complete packaging ecosystem: the Plastic/Glass Bottles, the Plastic Screw Caps, the specific Induction Aluminum Foil Liners (custom-matched to your bottle resin), and the Handheld Induction Sealer. By sourcing all components from our turnkey system, you are guaranteed that the electromagnetic frequency of the machine will perfectly activate the polymer chemistry of our foil liners, ensuring a 100% leak-proof weld every single time.

Q1: Do I need to remove the plastic cap to seal the aluminum foil onto the bottle?
No, that is the primary advantage of induction sealing. You insert the aluminum foil liner into the cap, screw the cap tightly onto the bottle, and then place the handheld induction wand directly over the closed plastic cap. The magnetic waves pass safely through the plastic and only heat the metal foil inside.

Q2: Can I use this machine to seal aluminum lids onto glass jars with metal caps?
No. Electromagnetic induction technology cannot be used if the cap or the bottle is made of metal. The magnetic field will heat the metal cap instead of the foil liner, which will melt the plastic threads, burn the operator, and fail to seal the bottle. For metal caps, you must use a traditional conduction heat sealer or a mechanical lug capper.

Q3: How do I determine the correct sealing time for my bottles?
Sealing time depends on the diameter of the cap and the thickness of the foil. A small 20mm cap might only require 0.5 seconds, while a large 80mm jar might require 1.5 to 2.0 seconds. The machine features a digital interface allowing you to increase or decrease the time in 0.1-second increments until you achieve a perfect, wrinkle-free seal without burning the plastic lip.

Q4: Will the heat generated by the induction wand damage or melt my product inside the bottle?
No. The electromagnetic heating process is incredibly rapid (usually under one second). The heat is localized entirely at the perimeter where the foil touches the bottle lip. The internal contents of the bottle, whether liquid medications, cosmetics, or food, remain completely unaffected by the momentary temperature spike.

Q5: Is this handheld machine suitable for high-speed continuous factory production?
This manual machine is engineered for low-to-medium volume production, laboratory testing, and startup operations (sealing up to 30 bottles per minute). If your production scales up to thousands of bottles per hour, we highly recommend upgrading to our BlissPak Inline Continuous Electromagnetic Induction Sealing Machines, which mount directly over your conveyor belts for fully automated, high-speed sealing.

The Physics of Electromagnetic Induction Sealing

Understanding how an induction liner works reveals the ingenuity of this packaging technology. A standard induction liner actually consists of four distinct layers: a pulpboard backing, a micro-layer of wax, the aluminum foil, and a heat-sealable polymer film at the very bottom.

When the operator presses the button on the handheld wand, the machine generates an oscillating electromagnetic field. This field induces electrical "eddy currents" exclusively within the conductive aluminum foil layer. The electrical resistance of the aluminum rapidly generates intense, localized heat. Within a fraction of a second, this heat melts the wax layer (releasing the foil from the pulpboard backing, which remains inside the cap) and simultaneously melts the bottom polymer film. As the polymer cools, it fuses permanently with the plastic or glass lip of the bottle, creating a hermetic seal.

Why Induction Sealing is Critical for Global E-Commerce

With the explosion of direct-to-consumer e-commerce, liquid products (shampoos, hot sauces, motor oils, liquid supplements) must endure harsh transit conditions. Packages are thrown onto delivery trucks, subjected to extreme temperature fluctuations in cargo holds, and often shipped upside down.

A standard screw cap without an induction seal relies entirely on mechanical torque and a foam gasket to hold back the liquid. Changes in air pressure during air freight or extreme heat can cause the plastic cap to expand and loosen, resulting in catastrophic leaks that damage surrounding cargo and trigger customer refunds. By utilizing BlissPak’s Handheld Induction Sealing Machine, you permanently weld the opening of the bottle shut. This acts as the ultimate insurance policy for e-commerce brands, guaranteeing your liquids arrive at the customer's doorstep as pristine and secure as the moment they left your facility.
